We Don't Sell Refractories.
We Engineer Steel Furnace Lining Systems.
Zone-specific castable and brick packages for EAF, steel ladle, tundish, and taphole — engineered around your heat cycle, not a catalog. High-alumina and magnesia grades. COA per shipment. Dry-out schedule and anchor layout included at proposal stage. From Zibo's six-decade refractory heritage, direct to your steelmaking line.
Your Refractory Supplier May Be Costing You More Than the Lining Itself
$18,000+/Hour
Unplanned EAF downtime from lining failure runs $18,000–$35,000 per hour in lost production. Most failures trace back to the wrong material grade for the zone — not the material quality itself. (Typical industry range)
40–60 Heat Campaigns
Standard high-alumina castable in EAF hot spots averages 40–60 heat campaigns before relining. Properly selected magnesia-based grades in the same zones regularly exceed 120 campaigns. (Based on field observations)
3-Week Lead Time Surprises
Unverified suppliers frequently miss agreed lead times on combined lining packages — castable arrives, brick doesn't. Relining gets delayed. Heat schedules slip. (Based on field observations)
52% of EAF Lining Failures
Industry failure analysis consistently identifies incorrect zone-material matching — not defective material — as the primary cause of premature EAF lining replacement. (Industry failure analysis)
We Don't Sell "One Grade Fits All Zones"
EAF furnace wall, steel ladle, tundish, and taphole operate at different temperatures, under different slag chemistries, and with different mechanical stress profiles. A single castable grade cannot be optimized for all four. We engineer zone-specific packages — and we supply the complete system.
Thermal-shock resistant
Slag corrosion resistant
Rapid dry-out / sequence cast
Consistent plugging
Vuulcan can include castable, brick, and anchorage components in a single combined lining proposal — single-source coordination across all four zones. Request a full furnace lining consultation →
Why Zone-Specific Matters
The Castable Sourcing Triangle
Premium global suppliers built deep specification capability — and price accordingly. Generic exporters compete on price with no engineering behind the material. Vuulcan operates in the gap: Zibo cluster-direct supply, zone-mapped specification depth, focused on castable engineering for steel furnace lining systems.
We are the supplier that will tell you which grade not to use in which zone — and why — before you sign the purchase order. Castable engineering is what we do best, and what we refuse to dilute. When we specify ladle brick or taphole mass alongside your castable, it is because the application demands it — not because we are a catalogue supplier.

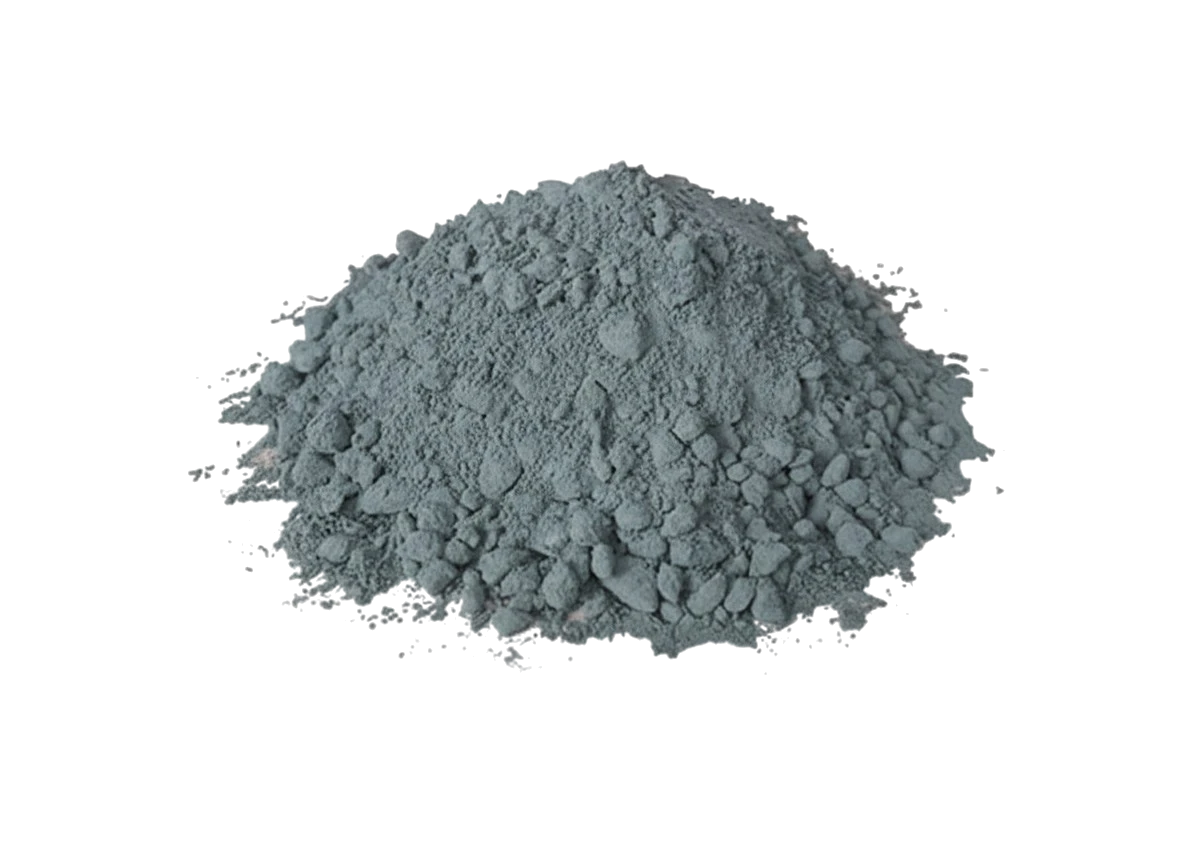

Steel Furnace Lining Systems — Zone-Engineered Castable & Brick Packages
One coordinated lining package per furnace — hot-face castable and brick matched to each zone's thermal and slag conditions, specified together rather than picked from a standard catalog.
Engineered for EAF, Ladle, Tundish & Taphole Zones
Zone-mapped high-alumina and magnesia castable systems for steelmaking lining. Typical performance ranges shown below — final grade selection based on your furnace profile and operating parameters.
| Zone | Grade | Al₂O₃ | Density | CCS (110°C) | Max Temp | Key Property |
|---|---|---|---|---|---|---|
| EAF Furnace Wall | HA-75 | 75% | 2.65 g/cm³ | ≥ 45 MPa | 1650°C | Thermal shock resistance |
| EAF Hot Spot | HA-80 | 80% | 2.75 g/cm³ | ≥ 55 MPa | 1700°C | High-load wear resistance |
| Steel Ladle Wall | MgO-85 | MgO 85% | 2.90 g/cm³ | ≥ 60 MPa | 1750°C | Slag corrosion resistance |
| Tundish Working Lining | HA-70 | 70% | 2.55 g/cm³ | ≥ 40 MPa | 1600°C | Rapid installation / dry-out |
| Taphole & EBT Fill | Taphole Mass | — | 2.80 g/cm³ | — | 1700°C | Consistent plugging performance |
Grades above are representative. Al₂O₃, MgO, and performance data are typical values from Zibo cluster production. Full datasheet and COA available upon request.
What Zone-Engineered Lining Systems Look Like in Practice
The following reflects typical application scenarios and industry-documented failure patterns. Vuulcan technical proposals are structured around the same diagnostic framework.
Scenario: EAF operator reporting premature lining failure at upper shell hot spots after 35–40 heat campaigns. Standard high-alumina castable (Al₂O₃ 65%) specified by previous supplier.
Root cause: Al₂O₃ content insufficient for operating temperature profile at hot spots (measured 1680°C+). Thermal shock cycling accelerating spalling at lower-density zones.
Material adjustment: HA-80 with controlled porosity profile and stainless steel anchor layout reconfigured to 150mm spacing.
Outcome range: Documented industry outcomes for equivalent zone-grade matching: 90–130 heat campaigns before scheduled relining.
Scenario: Steel ladle working lining showing accelerated wear at slag line after 60–80 heats. High-alumina brick (Al₂O₃ 70%) used in slag zone.
Root cause: Slag chemistry (high FeO, basic index >1.8) incompatible with aluminous lining. Magnesia-based grade required for slag resistance at this tap temperature.
Material adjustment: MgO-85 castable at slag line zone, HA-75 retained at lower wall and bottom.
Outcome range: Slag zone campaign life improvement of 60–80% documented in equivalent slag chemistry conditions.
Before the Brand
Came the Furnace Line.
Vuulcan Refractories was founded by a team that grew up inside Zibo's refractory manufacturing industry. We did not enter refractories from the market side — we entered the market from inside the industry. Our experience began on production lines, beside furnaces, raw material systems, and quality control laboratories. Over 20 years of manufacturing experience shaped how we evaluate materials, select production partners, and engineer refractory systems for demanding thermal environments.
The raw material science behind quality refractory brick — particle size distribution, binder chemistry, sintering behaviour — is also the foundation of monolithic castable engineering. As Zibo's refractory cluster evolved from brick-only production into castable systems, it carried decades of firing knowledge into a new product form. Our castable recommendations are grounded in that same production-side understanding — formulation judgment built from making, not from sourcing.
Today, Vuulcan operates as a cluster-backed brand — matching each application to the right production partner within Zibo's qualified manufacturing network. Vuulcan owns the engineering interface and quality oversight. The cluster provides the manufacturing depth.
Certifications Held by Our Zibo Production Partners
We coordinate supply from audited production partners in the Zibo refractory cluster. The facilities we source from hold the certifications below, and batch-level chemistry reports follow every shipment — so your QA team has documented traceability before containers land.
We Engineer Castable Linings for More Than Steel Furnaces
The same zone-mapped engineering and Zibo cluster-direct supply applies across furnace types. If you run cement or petrochemical furnaces alongside your steelmaking operation, we can engineer those linings too.
Cement Kiln Castable
Zone-mapped castable for cement rotary kilns — feed end, calcining, transition, burning, and cooler zones. LCC and ULCC grades, full COA per shipment.
View Cement Kiln LiningPetrochemical Furnace Lining
Anti-coking and sulfur-resistant castable for cracking furnaces, reformers, process heaters, and sulfur recovery units — with backup insulation specified by zone.
View Petrochemical LiningFrom Inquiry to Delivered Lining System — 4 Steps
Inquiry & Scoping
Tell us your furnace type, zone configuration, current lining performance, and target campaign life. We ask the questions generalist suppliers skip — and respond within 6 hours.
Technical Proposal
Within 6 hours: zone-mapped grade selection, anchor layout recommendation, dry-out schedule, and FOB pricing. No commitment required.
Sample & Validation
Sample shipment available before full order. COA included. We recommend physical testing at your facility before committing to a full lining program.
Production & Delivery
Coordinated production across Zibo cluster partners. Standard lead time 18–28 days FOB Qingdao. Export documentation complete on shipment.
Tell Us About Your Furnace
Share your furnace specification and we will respond within 6 hours with a zone-mapped lining proposal and FOB pricing.
